Ferrari 275 GTB/4

308 GTB 3.5L Engine On Dyno

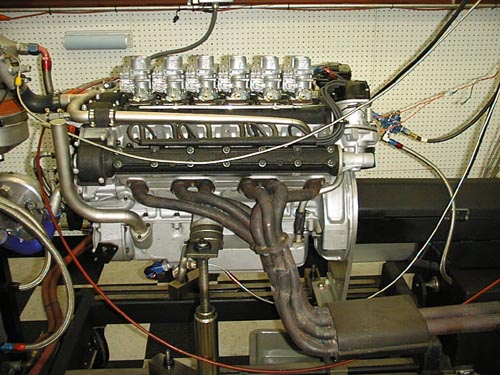

This engine came from a 275 GTB/4 alloy bodied car. The owner wanted a totally stock rebuild. I’m always surprised by the power numbers on these engines. The factory says 300 HP at 8,000 rpm and 231
ft-lbs. of torque at 6,050 rpm, but so far, the engines we have tested are far short of those numbers. See the road test section for more interesting thought on that subject.

Road Test Data Info








Type: 275 GTB (226)
Bore: 77mm
Stroke: 58.8mm
Compression Ratio: 9.2:1
Heads: stock
Cams: stock
Induction: 6 Weber 40 DCN with air filter
Exhaust: stock 3 into one, front mufflers only
Ignition: stock distributors with points/condenser/coil



308/358 GTB QV Stage 2 dyno Graph
